Trash Rack Cleaning Machine
Trash Rack Cleaning Machine
A trash Rack Cleaning Machine (TRCM) reliably removes debris (branches, trunks, leaves, grass, bamboo etc.) coming with the water & getting struck on the Trash Racks and blocking the flow of water to ensure unobstructed flow of water to the turbines.
We offer the following Trash Rack Cleaning Machines.

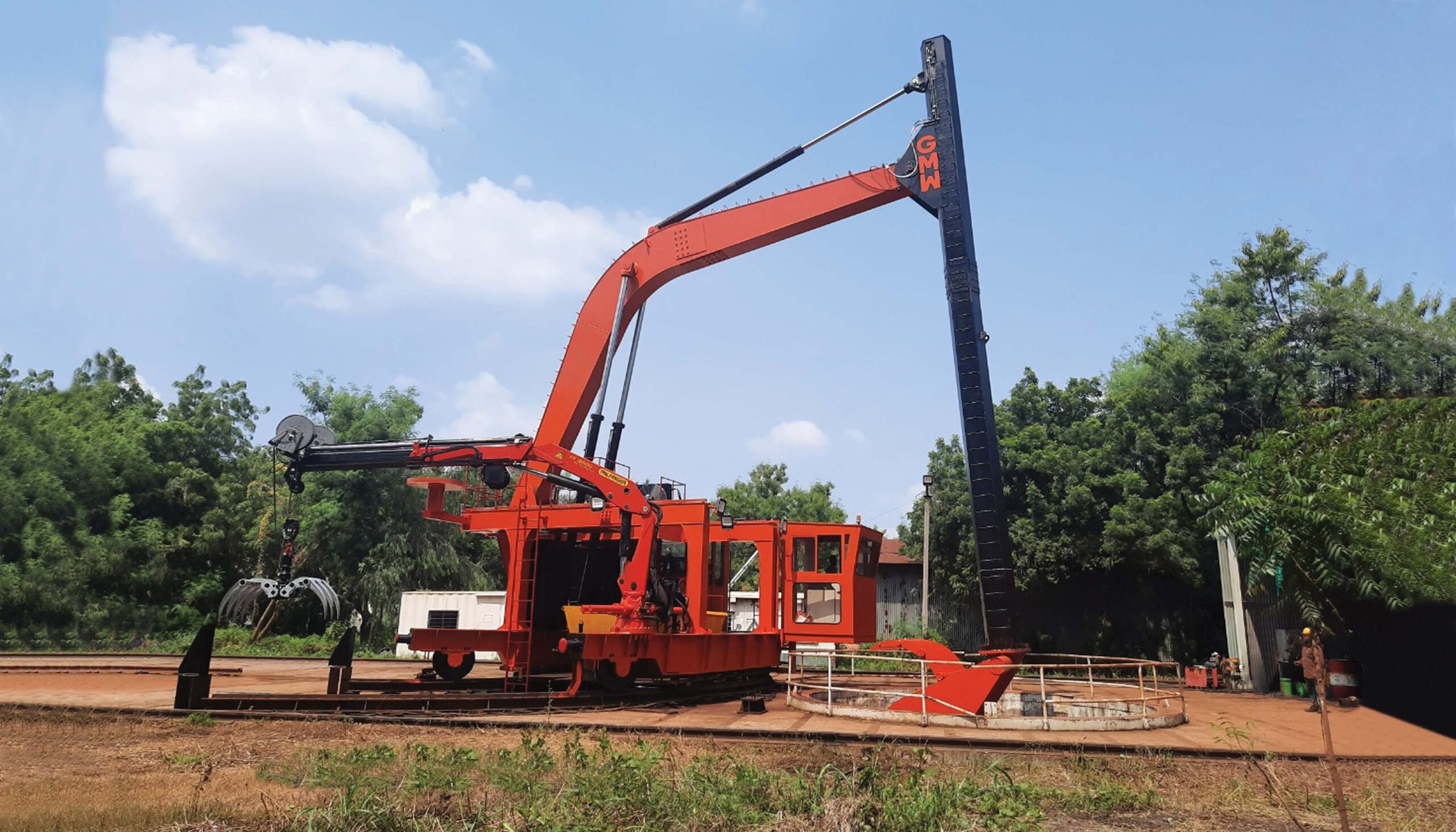

Hydraulic Trash Rack Cleaning Machine
Available in semi-automatic and fully automatic variants. The operation for raking is completely hydraulic. Positive raking force to pierce the thick layer of debris for effective penetration, raking and cleaning hydraulically.
The cleaning length of a hydraulic jib trash rack cleaner has been limited to 15 or 20 meters for techno-economical and architectural (height) reasons.
Features
- Hydraulic and electric controls are all accommodated inside a weatherproof control cabin.
- The rake can be operated automatically (automatic startup with pushbutton and differential level controls) and manually to clean all the trash rack bays with one raking unit.
- Requires no conveyors. Can dump the raked debris directly into a truck.
- Flexible – Curved Track as an option.
- The machine can be supplied with several optional attachments. (i.e., hydraulic gripper, log gripper, cleaning rake etc.)
- The rake can remove other equipment, such as the trash racks or stop logs, for servicing with an optional attachment.
- Available in Rope Operated and Hydraulic Variants.
- Low maintenance, with no operating parts permanently submerged.
Cable-operated racking machine
Our Trash Raking Mechanisms are designed as an optimized solution for every project, offering a wide range of wire rope operated options. These machines are specifically engineered to clean areas with a larger intake depth. With our products, you can trust that your cleaning needs will be met efficiently and effectively. We pride ourselves on providing reliable and durable machinery that is built to last. Let us help you find the perfect solution for your project needs.
Features
- Fully automatic machines with the provision of manual operation, if required.
- Raking width from 1m to 6m and for channels from 5m to 20m in depth. Higher capacity machines can be supplied if required.
- Fully customized for a specific site use using the latest CAD packages.
- Hoppers/ Tyre mounted trolleys with Hydraulically operated flaps for Trash Handling and Disposal to far off-site.
- Also, additional features like an articulated boom crane for handling logs, oversized debris, stop log panels, etc.
